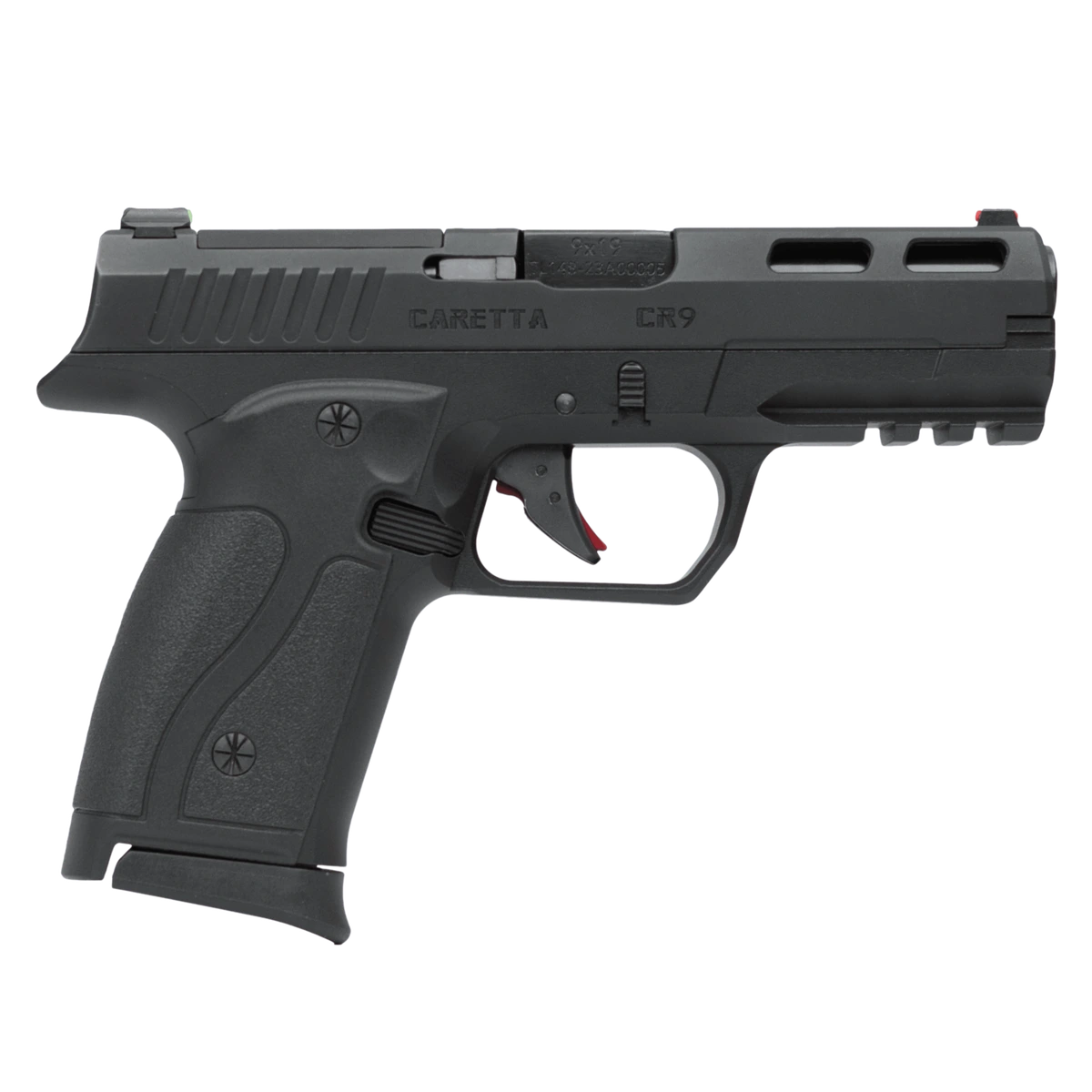

CR9

CR9 Alumınum Frame Pistol

Full-size striker-fired pistol in 9x19mm — 4.02" barrel, 7075 aluminium frame, 4140 steel slide, trigger safety with firing pin block, 15-round magazine. Just 752 g without the magazine, engineered for duty, competition and personal defence with an operating life exceeding 10,000 rounds.

ActionSemi Automatic

Caliber9×19mm

Capacity15+1 rds

Barrel4.02" (102mm)

Weight752.6g — 965.4g

FrameAluminum

SAFETYTrigger Safety, Firing Pin Block

SlideSteel

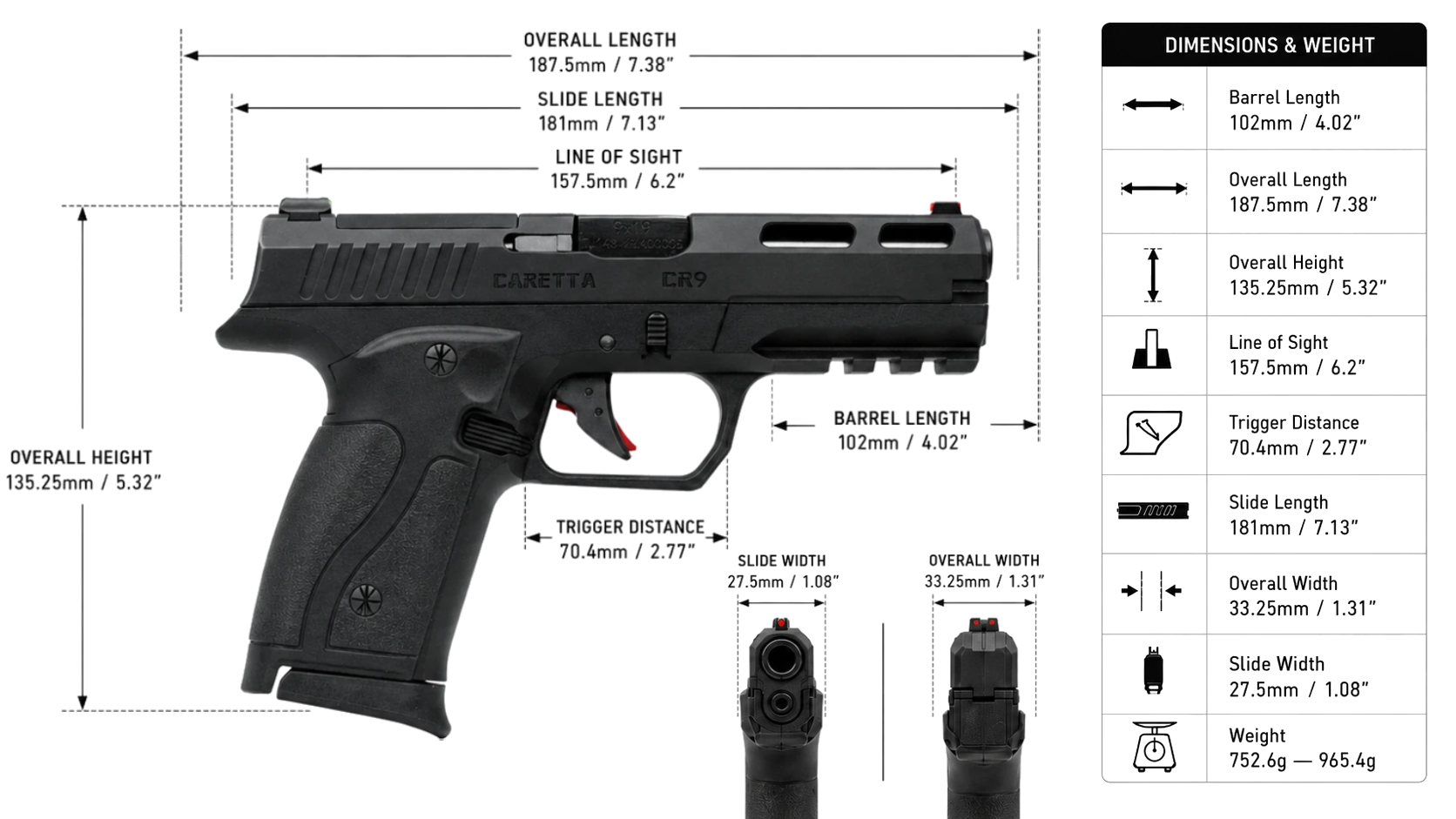

CR9 Technical Diagram

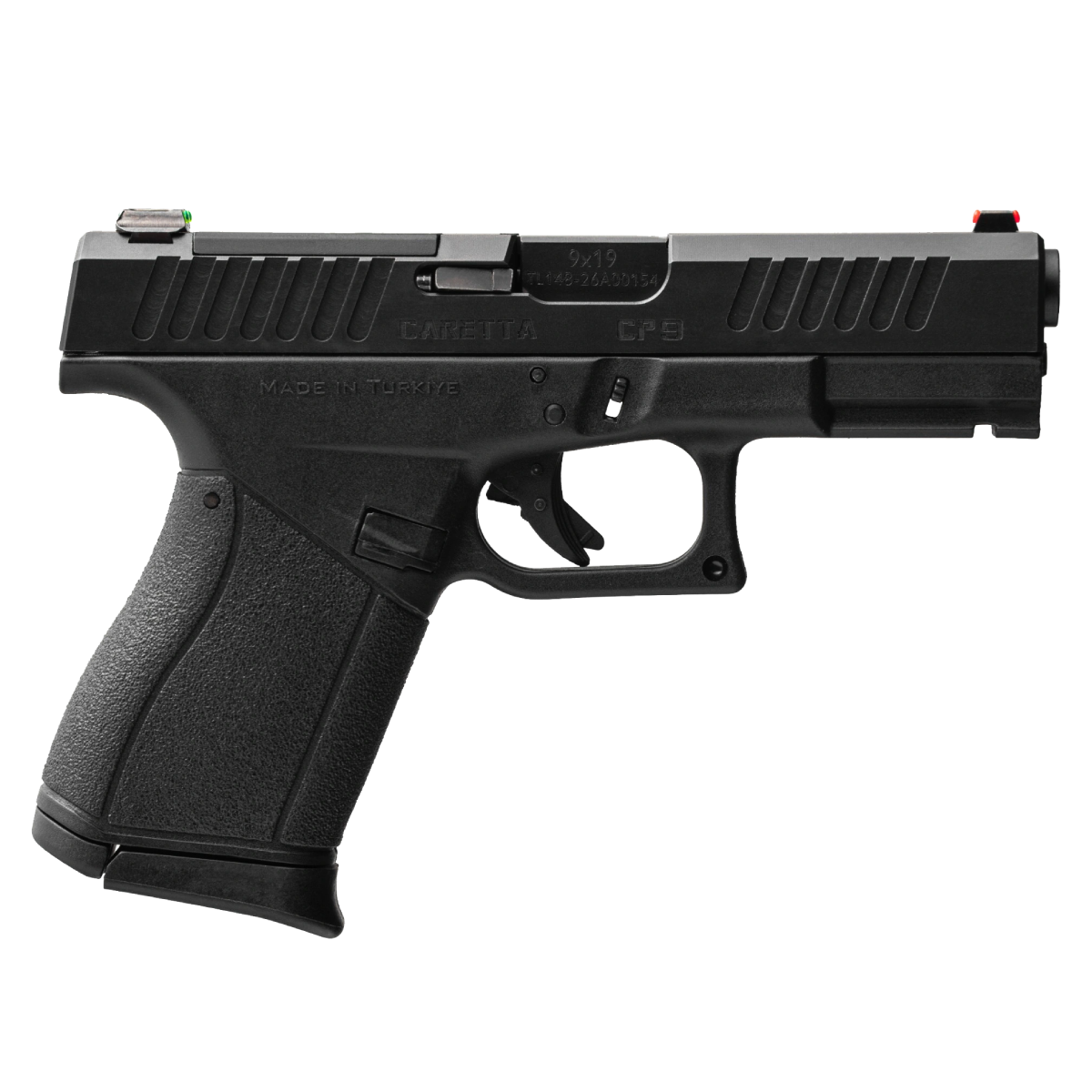

CP9

CP9 polymer frame Pistol

Polymer-frame striker-fired 9mm — the CR9’s 4.02" barrel and 15-round capacity in a slimmer 25.5 mm profile with a 4140 steel slide. Lighter and narrower than the CR9, ideal for concealed carry and plainclothes duty.

ActionSemi Automatic

Caliber9×19mm

Capacity15+1 rds

Barrel4.02" (102mm)

Weight606g — 855.8g

FramePolymer

safetyTrigger Safety, Firing Pin Block

SlideSteel

CP9 Technical Diagram

Dimensions

CR9 Technical Diagram

CP9 Technical Diagram

Full Lineup

All CR9 Color Variants

CR9 / C102 — Olive Drab

OLIVE DRAB

CR9 / C102

Full olive drab finish across slide and frame. Low-glare field configuration with fiber-optic sights.

9mm · 15+1 rds · 4.02" · 752 g

Details

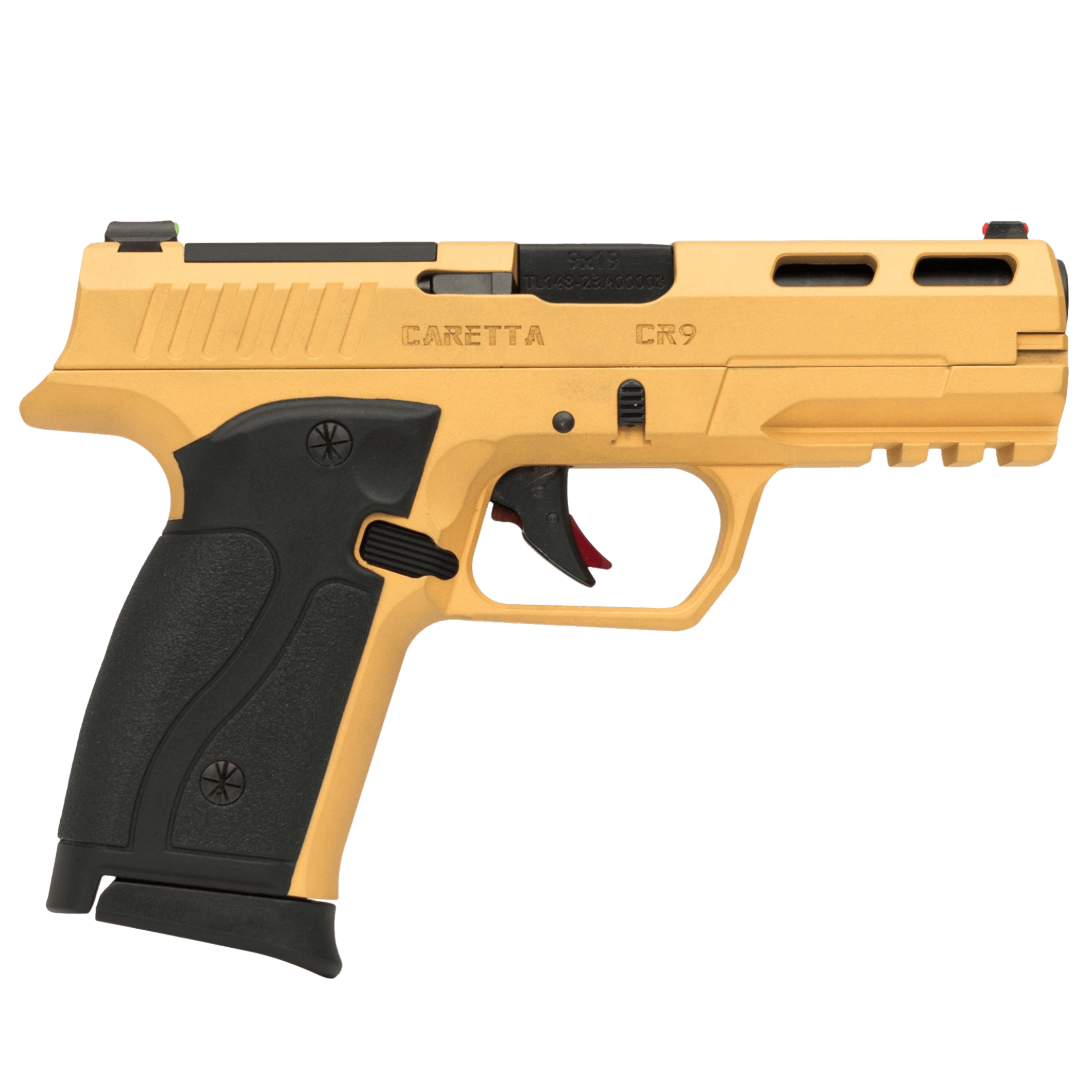

CR9 / C103 — Gold

GOLD

CR9 / C103

Full gold finish on slide and frame. Distinctive presentation configuration of the CR9 platform.

9mm · 15+1 rds · 4.02" · 752 g

Details

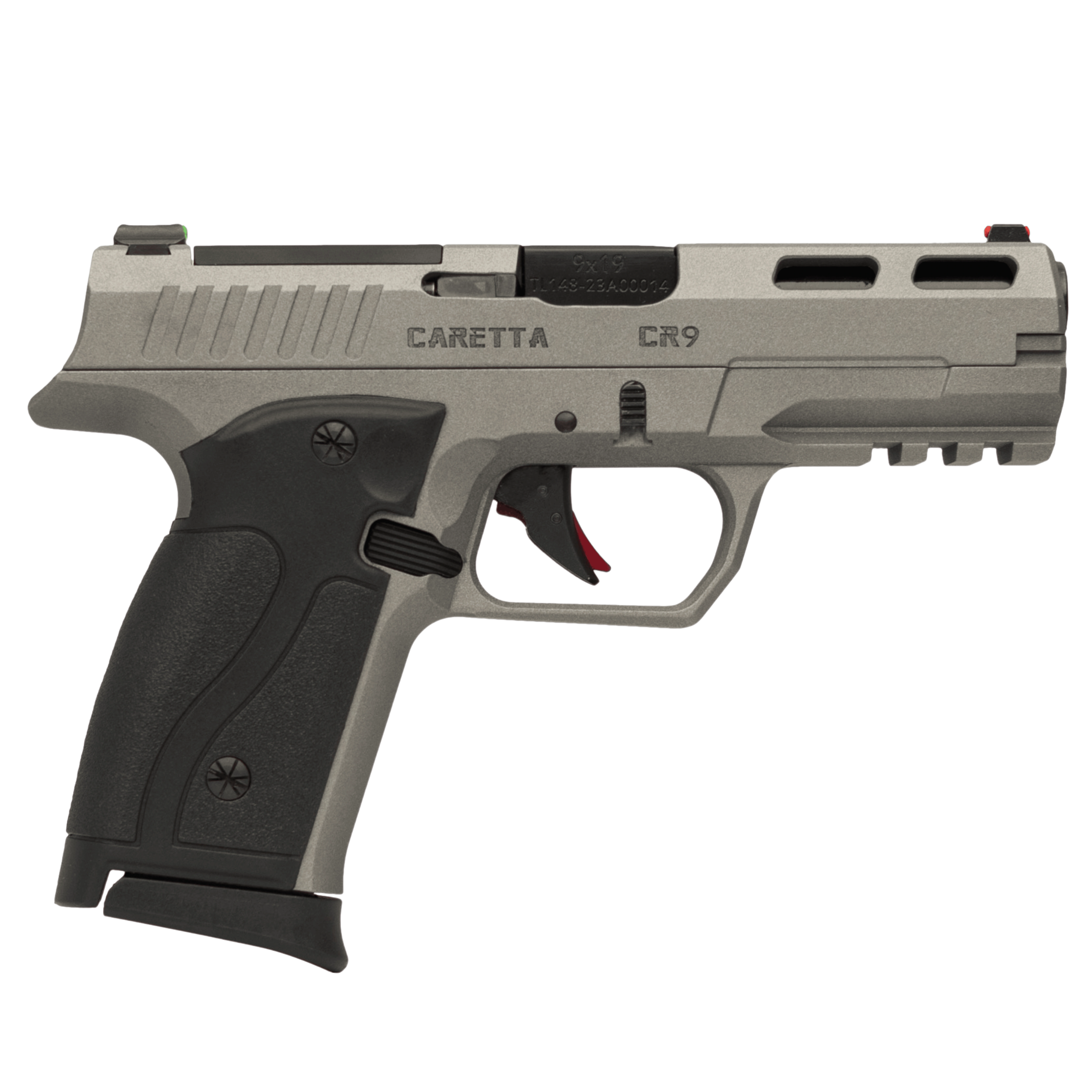

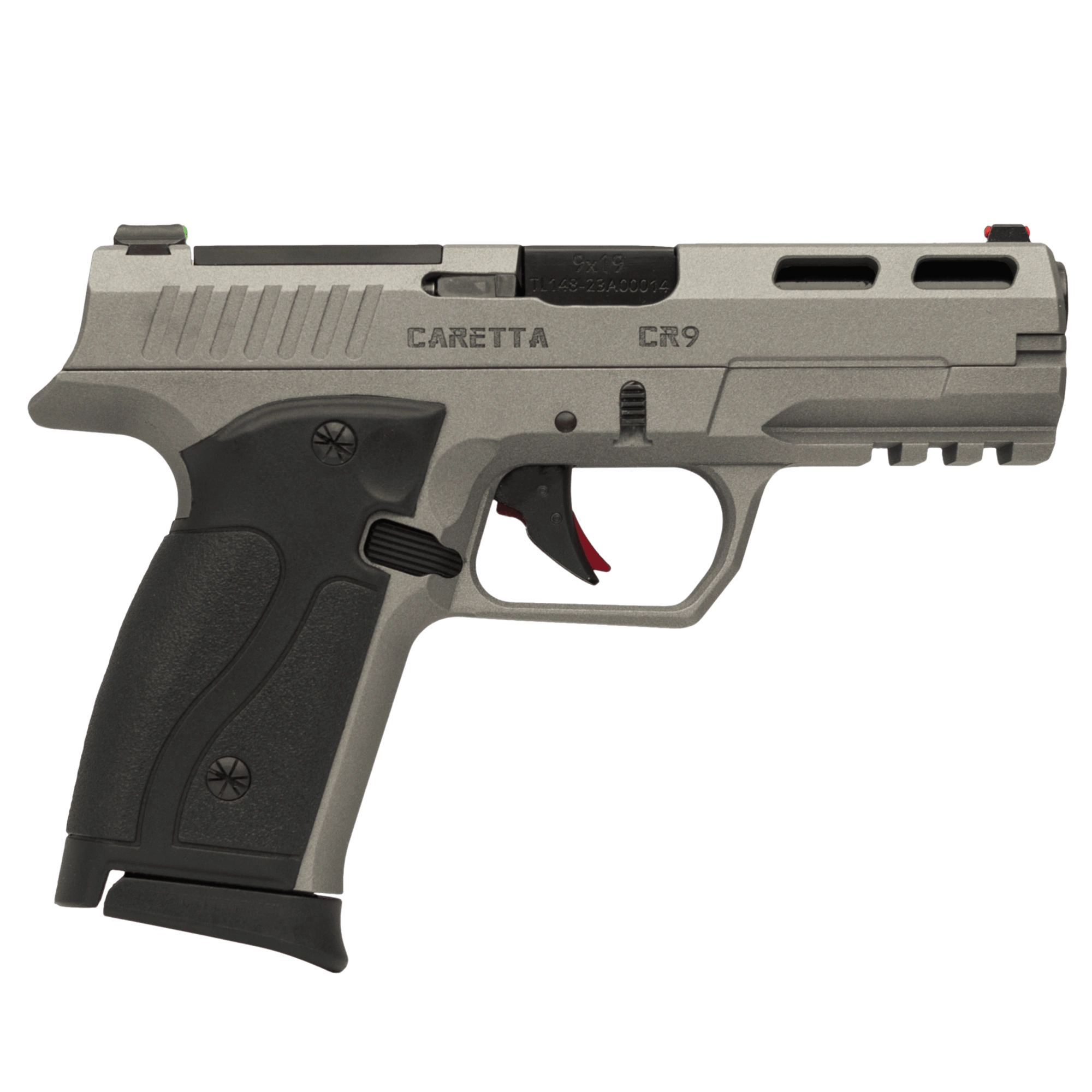

CR9 / C104 — Tungsten Grey

TUNGSTEN

CR9 / C104

Full tungsten grey finish — matte metallic tone across slide and frame.

9mm · 15+1 rds · 4.02" · 752 g

Details

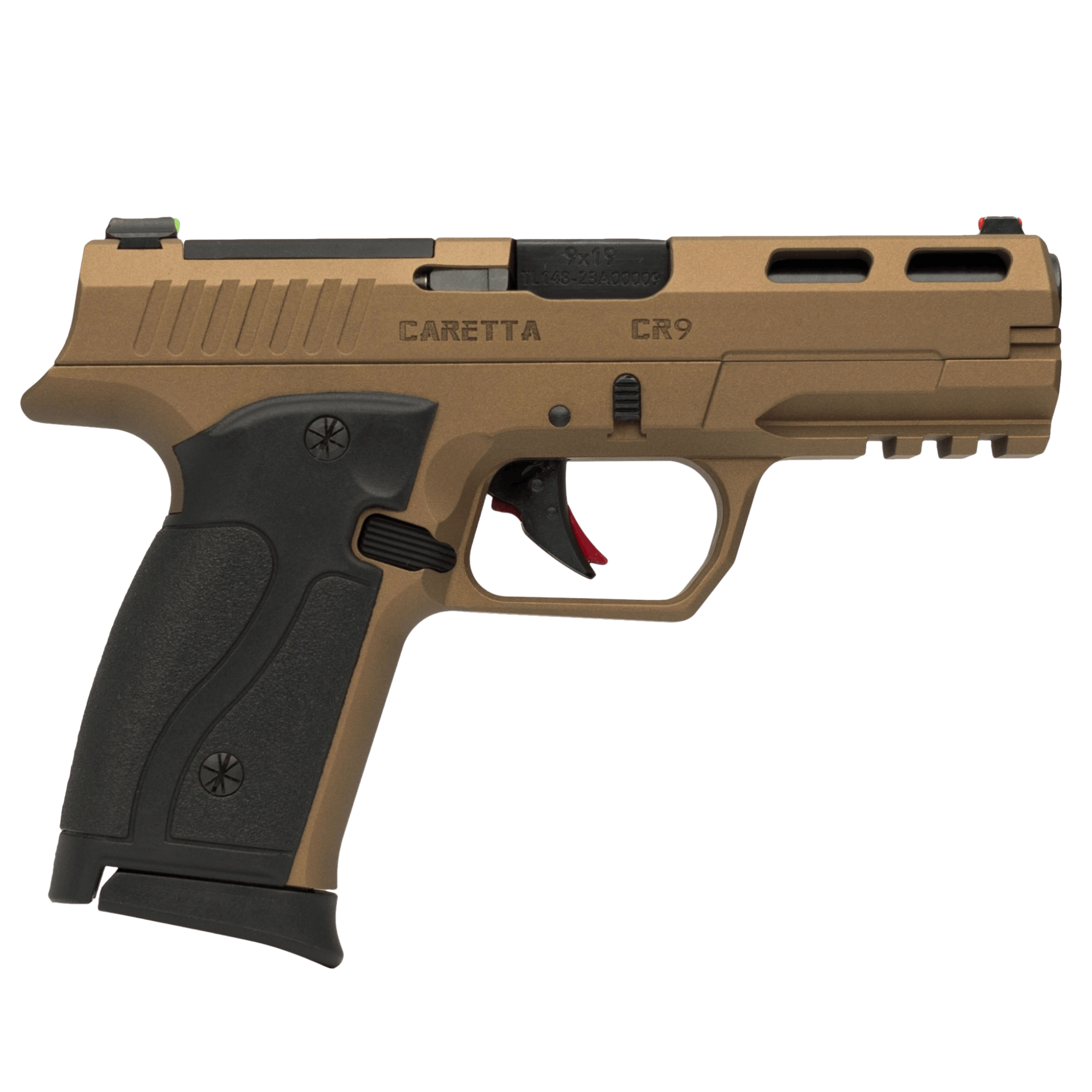

CR9 / C105 — Burnt Bronze

BRONZE

CR9 / C105

Full burnt bronze finish across slide and frame.

9mm · 15+1 rds · 4.02" · 752 g

Details

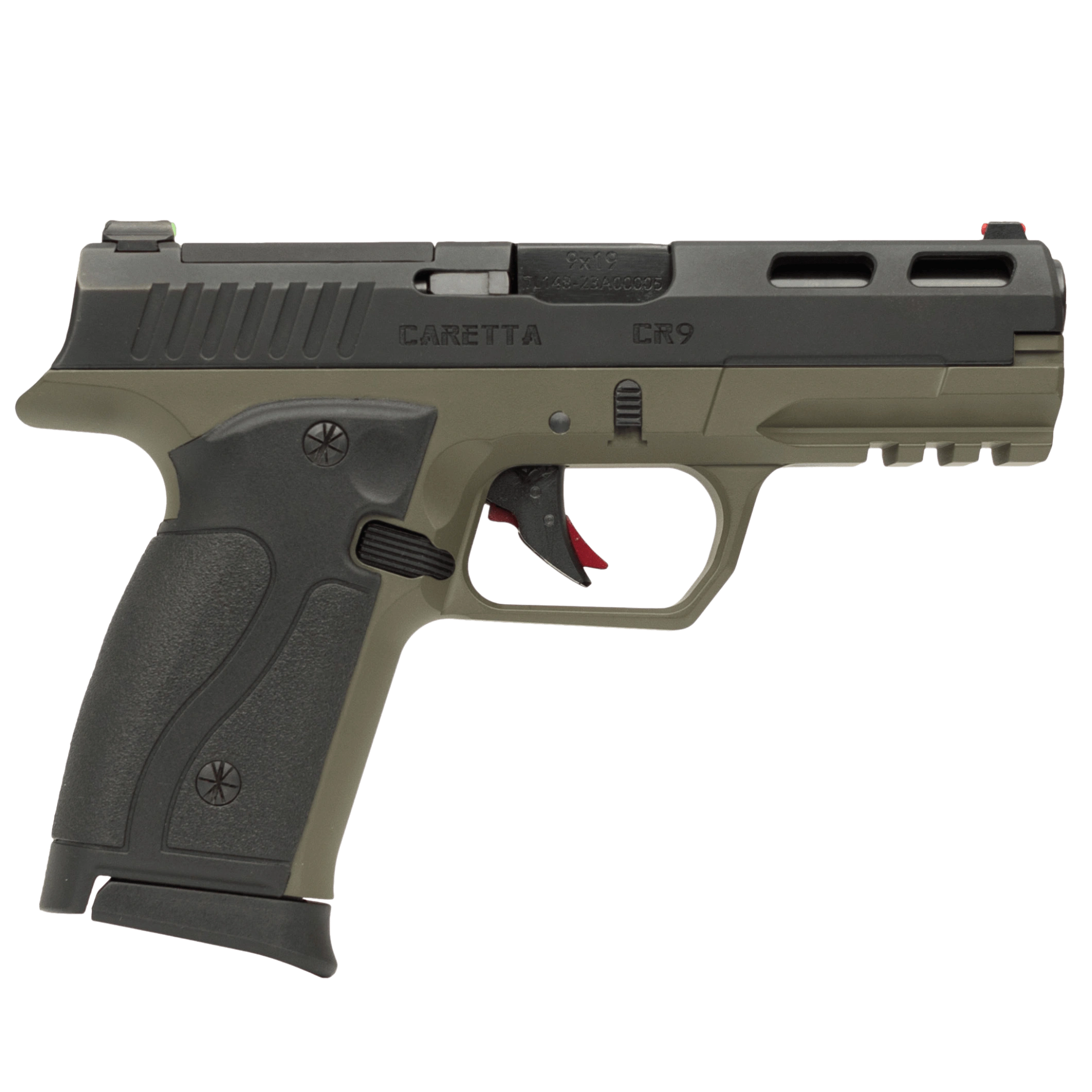

CR9 / C202 — Black slide, olive drab frame

BLK / OLIVE

CR9 / C202

Two-tone: black slide over olive drab frame.

9mm · 15+1 rds · 4.02" · 752 g

Details

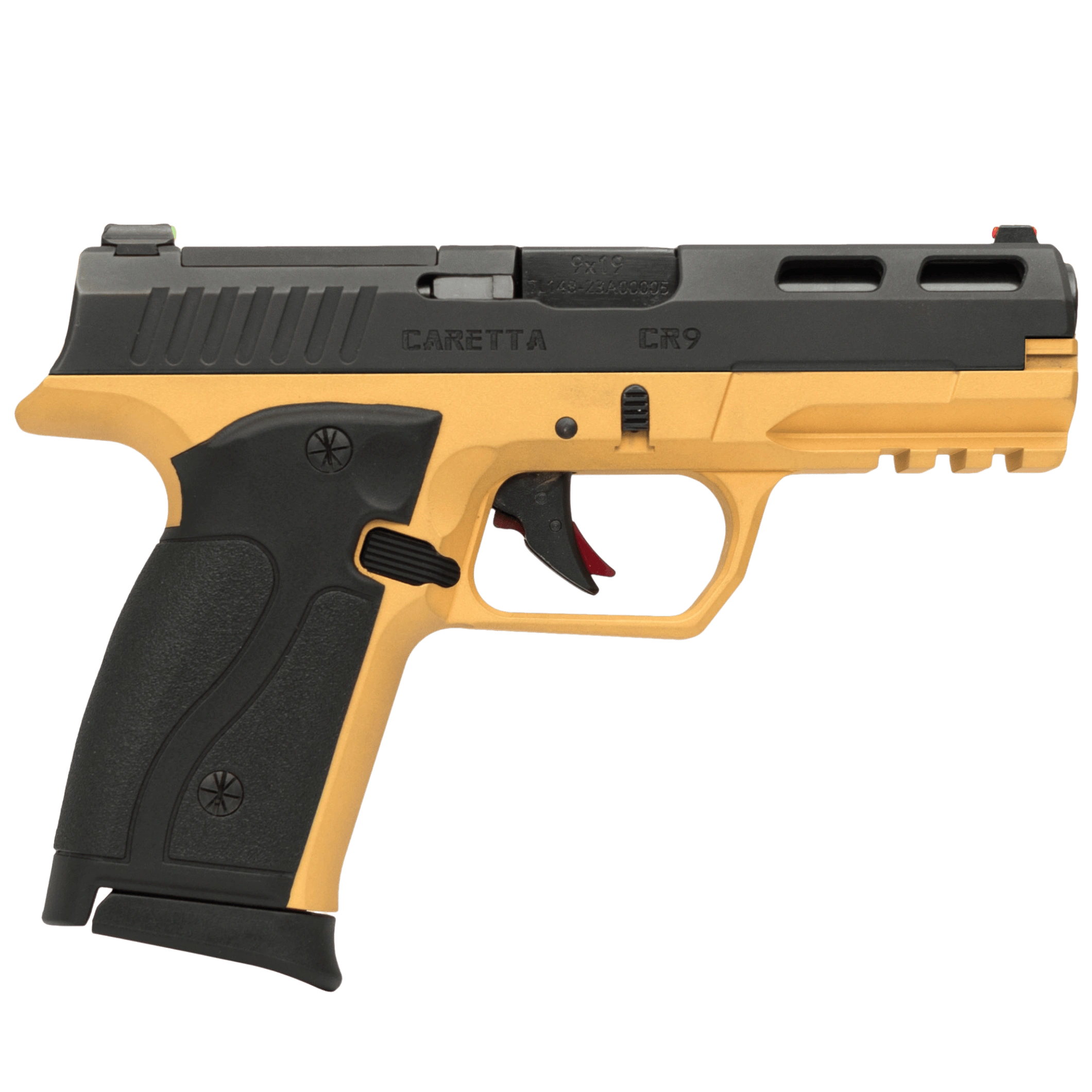

CR9 / C204 — Black slide, gold frame

BLK / GOLD

CR9 / C204

Two-tone: black slide over gold frame.

9mm · 15+1 rds · 4.02" · 752 g

Details

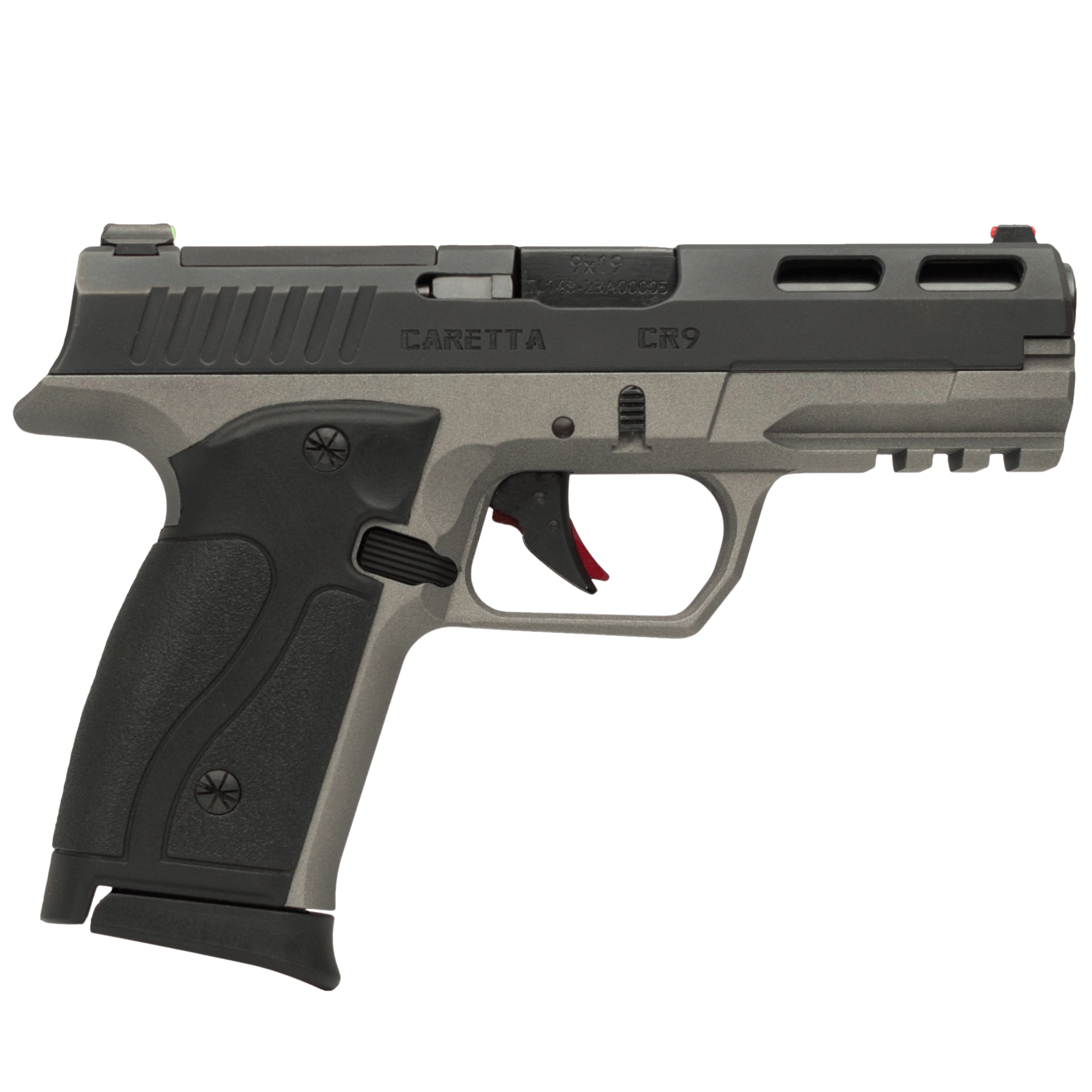

CR9 / C206 — Black slide, tungsten grey frame

BLK / GREY

CR9 / C206

Two-tone: black slide over tungsten grey frame.

9mm · 15+1 rds · 4.02" · 752 g

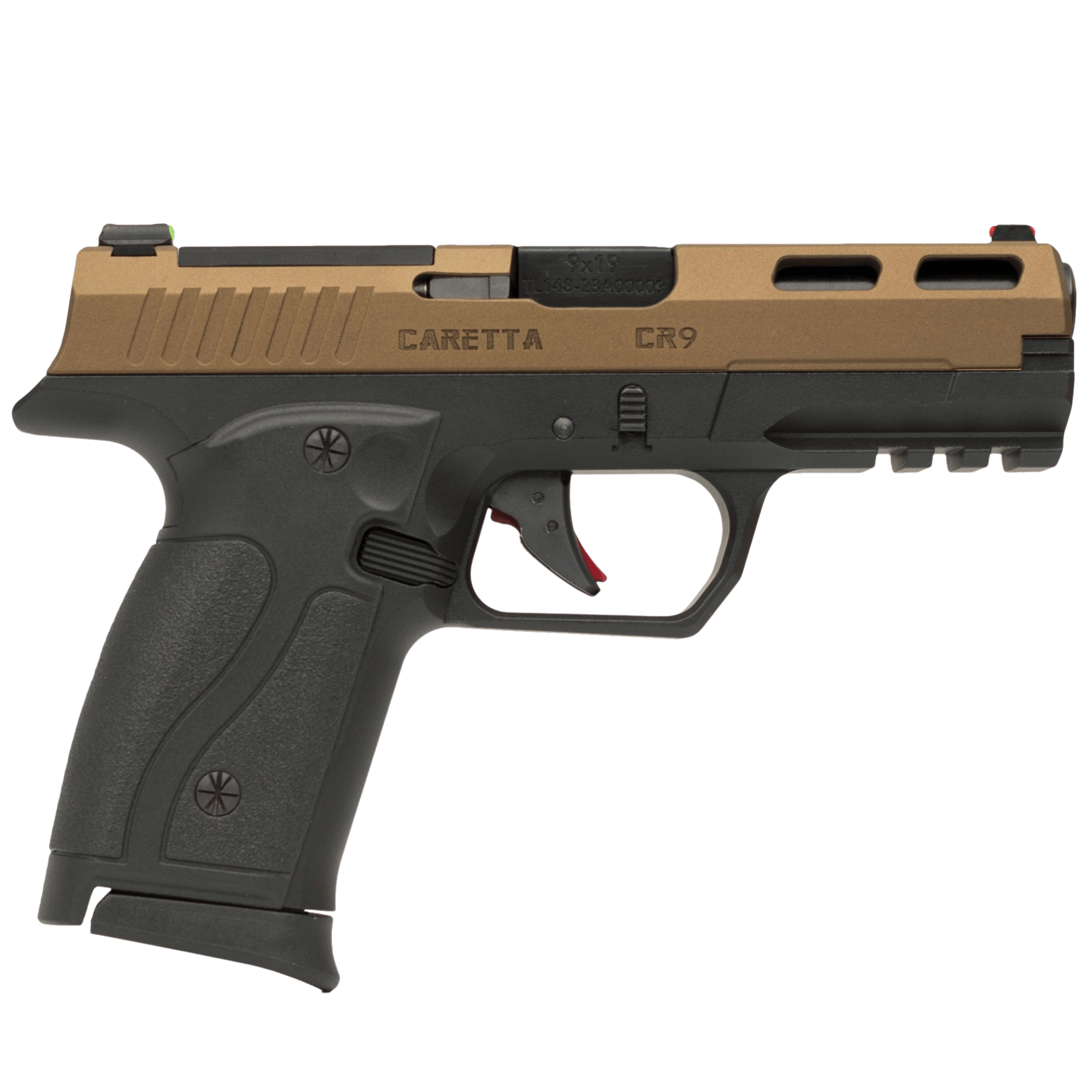

CR9 / C207 — Burnt bronze slide, black frame

BRZ / BLACK

CR9 / C207

Two-tone: burnt bronze slide over black frame.

9mm · 15+1 rds · 4.02" · 752 g

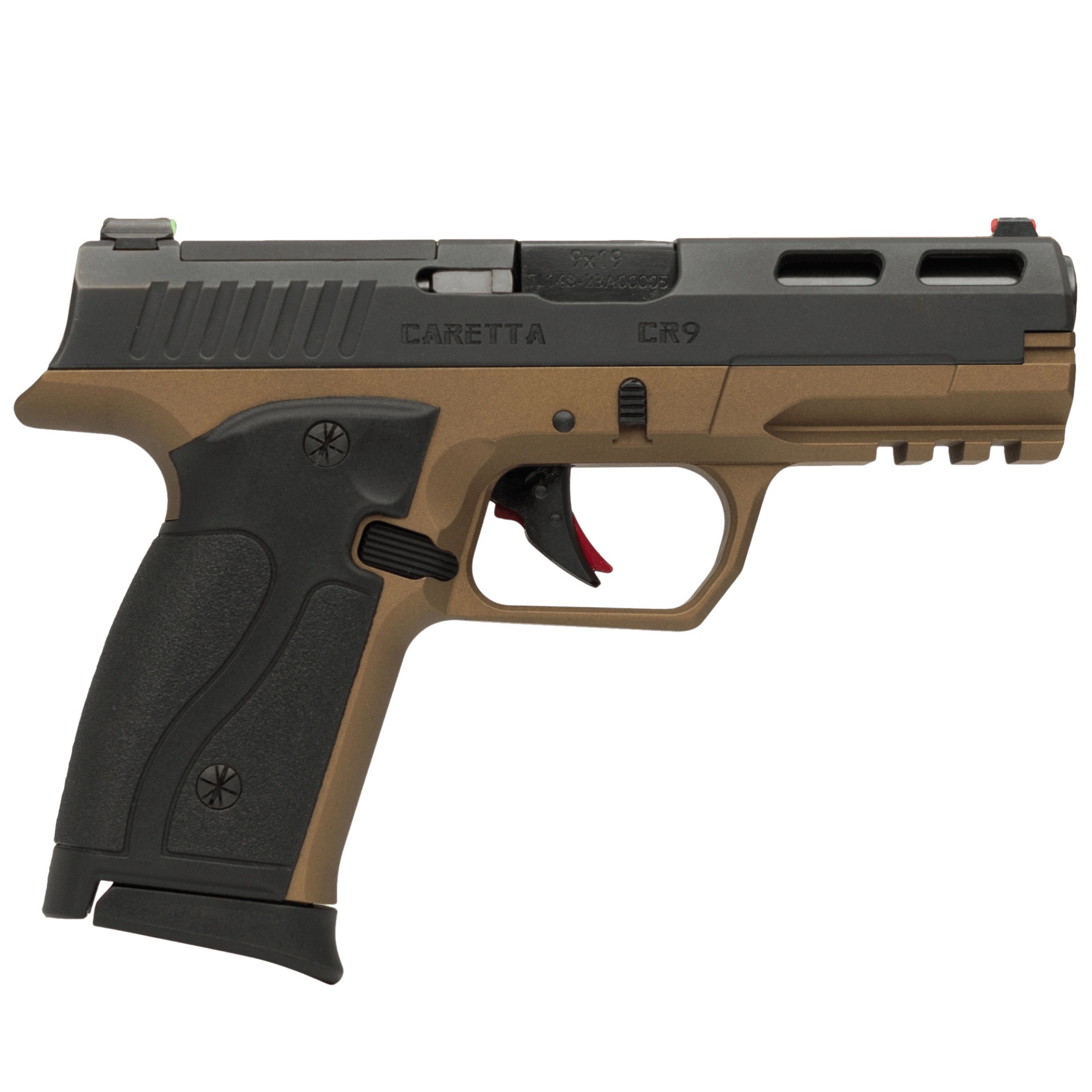

CR9 / C208 — Black slide, burnt bronze frame

BLK / BRONZE

CR9 / C208

Two-tone: black slide over burnt bronze frame.

9mm · 15+1 rds · 4.02" · 752 g

Benchmark

CR9 vs. Competitors

Direct comparison against the leading compact 9mm service pistols. ★ denotes advantage.

Specification	CR9 CR9 Defence	Glock 19 Gen5 Glock	CZ P-10C Česká zbrojovka
Caliber & Action
Caliber	9×19mm Parabellum	9×19mm Parabellum	9×19mm Parabellum
Action Type	Short recoil, locked-breech	Short recoil, locked-breech	Short recoil, locked-breech
Safety System	Trigger safety + FP block	Trigger + FP + drop safety	Trigger safety + FP block
Dimensions
Barrel Length	102 mm / 4.02"	102 mm / 4.02"	102 mm / 4.02"
Overall Length	187.5 mm / 7.38"	185 mm / 7.28"	190 mm / 7.5"
Overall Width	33.25 mm / 1.31"	34 mm / 1.34"	32 mm / 1.26"
Overall Height	135.25 mm / 5.32"	128 mm / 5.04"	132 mm / 5.20"
Weight
Unloaded (magazine)	625 g	670 g	740 g
Loaded (15+1)	752.6 g	855 g	≈ 925 g
Magazine Capacity
Standard	15 rounds	15 rounds	15 rounds
Extended optional	17 / 21 rounds	17 / 24 / 33 rounds	17 rounds
Trigger System
Trigger Pull	25 N / 5.6 lbf	26 N / 5.8 lbf	25 N / 5.6 lbf
Trigger Travel	12 mm	12.5 mm	10 mm
Durability & Service
Service Life	10,000+ rounds	10,000+ rounds	10,000+ rounds
Slide Material	4140 steel, nitrocarburized	Carbon steel, nDLC finish	Steel, black nitride
Frame Material	7075 aluminum alloy	Polymer (steel insert)	Fiber-reinforced polymer
Pricing
MSRP (standard)	$499	$647	$549
Warranty	Lifetime	Limited lifetime	5 years
